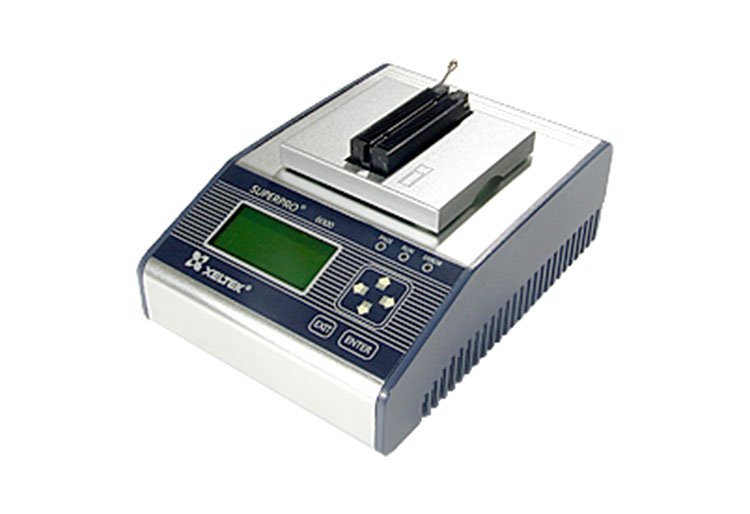

Ultra High Speed Programmers-SP6100N

As of today, 412 manufacturers and 104,215 programmable devices are supported.

As of June 1, 2020 (from the date of receipt of the order), the SP6100N and SP6104N will no longer be shipped with the DIP48 locking socket as standard.

The difference between SP6100N and SP6100 is that the N series better optimizes the signal circuit, and the current factory SP6100 and SP6104 series are all with N versions.

SUPERPRO/6100N intelligent super speed programmer/burner/burner, the burn speed is up to 30% higher than the SUPERPRO 5000, suitable for users with extremely sensitive production capacity;

Supports up to 256 GBytes of file writing;

144 pin universal drive circuit. Only one adapter is required for different types of chips in the same package within 144 pins. Universal adapter guarantees fast new device support.

Directly support a variety of voltage devices from 1.2V to 5V.

The more advanced waveform drive circuit guarantees a very high burn success rate. With the IC manufacturer certified algorithm, whether it is low voltage devices, second-hand devices or low quality devices, it can ensure a very high programming yield. The programming result can be selected for high-low double voltage check to ensure lasting and stable results.

In online mode, PC controls the programmer/burner/burner through USB2.0 port (high-speed), which is convenient for debugging and suitable for research and development; In offline mode, the programmer/burner/burner relies on its own CPU, LCD display, removable memory (standard CF card) to run independently from the PC, which is convenient to operate and easy to expand, and is most suitable for mass production in the factory site. The CF card can store a maximum of 100 project files depending on the capacity.

Automatic detection of chip misplacement and poor pin contact to avoid device damage.

Perfect overcurrent protection to avoid damage to the programmer.

Rich software features simplify operations, improve efficiency, avoid errors, and care for users. The Project saves the user's various operations and Settings about the object device, including device model setting, write file call, configuration bit setting, batch processing commands, etc., in the project file, and enters the write operation one step each time it is run, effectively reducing the probability of misoperation. Project documents can be encrypted to prevent data leakage. Batch processing (Auto) commands allow users to organize common sequences of commands such as erase, blank check, programming, verification, and encryption into a single command at will. In mass production mode, once the chip is correctly inserted into the socket, the CPU automatically starts the batch processing command without manual keys. Standard serial number generation and insertion function and accept custom special serial number generator. Log files facilitate quality tracking.

Supports Windows 7, Win10, Win11 32-bit / 64-bit operating systems.
