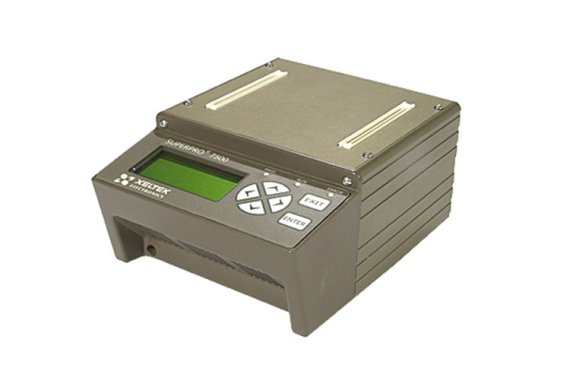

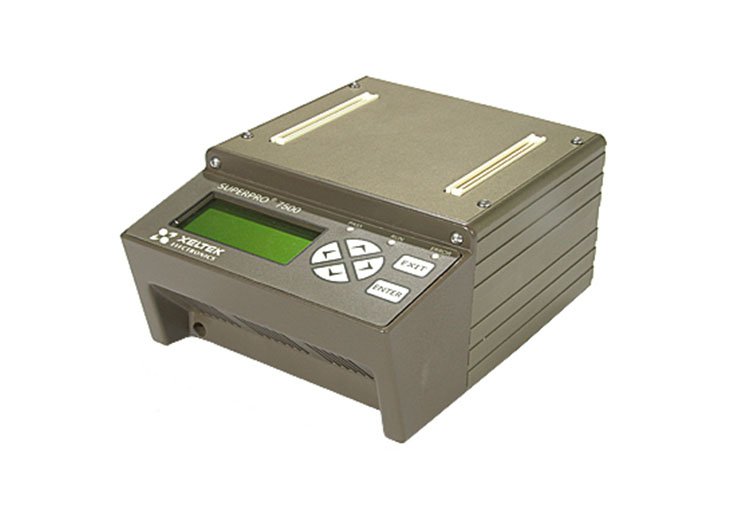

Offline/Online Ultra High Speed Universal Programmers SP7500N

(1) The burning speed of eMMC devices is increased by 10 times, ordinary NAND devices are increased by 1 time, and other devices have different degrees of improvement. NOR/NAND FLASH,  Commonly used devices such as serial EEPROM/FLASH can program up to 4 chips simultaneously (depending on device type and packaging), with the price of a general-purpose programmer/programmer/writer comparable to the production capacity of a mass-produced programmer/programmer/writer.

(2) Powerful NAND FLASH platform solution library and project support capabilities. NAND FLASH supports dozens of mainstream platforms including (but not limited to) Samsung (XSR1.0/1.6), QualComm, HYNIX (HIFS), MTK (Solution V1.1), ICERA (v1.0/2.0), ST (7162, 7141, etc.), AMLOGIC (IF2/0), REALTEK, PICOCHIP, DataLight (Flash FX Pro), Marvel (310/303/920/935...), BroadCom, ZTE, Intel (CE4100), UBI, Lianxin Technology LEADCORE (L1809OG), MSATR, etc. Quick user project software customization (cycle 1-10 working days).

(3) 144 pin universal drive circuit. Normally, only one adapter is needed for chips with the same package but different models within 144 pins. Universal adapters ensure fast support for new devices.

(4) The more advanced ninth management pin driving technology provides cleaner signals, wider voltage ranges, and more accurate and higher frequency clocks. Cooperate with precision timing generators that comply with original factory specifications to ensure direct support for devices with various processes ranging from 1.2V to 5V VCC, and have higher speeds and higher yield rates.

(5) Chip security guarantee mechanism. Built in precision voltage self calibration circuit ensures that the voltage is within the preset accuracy at all times; The self diagnostic function can diagnose hardware faults at any time to ensure that the machine is in good condition; Automatically detect chip misconnection, reverse insertion, and poor pin contact before operation; Check the chip ID code before operation.

(6) Complete overvoltage/overcurrent and ESD protection functions to prevent damage to programmers/programmers/writers.

Three working modes:

1) Local mode. Communicate with local PC through USB 2.0 port (high-speed) to achieve online control;

2) LAN mode. Connect to the local area network to achieve local or remote control;

3) Offline mode. Equipped with a keyboard, LCD display, and removable storage (standard SD card), it can run independently offline, with convenient operation and easy expansion, making it the most suitable for large-scale production in factories. Engineering files (quantity limited only by card capacity) are created and downloaded to the SD card while online.

Powerful software features simplify operations, improve efficiency, avoid errors, and care for users.

1) Engineering (Project). Save various operations and settings related to the target device by the user, including device model settings, loading of burn files, configuration bit settings, batch commands, etc., in the engineering file. Each time it runs, it enters the write operation step by step, effectively reducing the probability of misoperation.

2) Batch processing (Auto) command. Allow users to freely organize commonly used command sequences such as erase, empty, program, verify, and encrypt into a single command that can be completed in one step.

3) Mass production mode. Once the chip is correctly inserted into the socket, the CPU automatically starts batch processing commands without the need for manual buttons.

4) Dynamic buffer. Each chip can burn different data, and the software automatically completes data changes according to user requirements, including standard and customized serial number generators (such as MAC addresses).

5) Log files and production statistics functions. Provide convenience for quality tracking.

6) Intellectual property protection function. SD card encryption; Engineering file permission management and encryption; Production limit; Remote control.

7) Expansion. Control up to 12 machines to work simultaneously through USB HUB.

8) Supports JAM/STAPL Player and Direct C.

9) Supports almost all known file formats and has automatic file format recognition function

10) Barcode management function. By scanning the barcode on the work order, a series of tasks such as loading engineering files can be completed to avoid human errors.

11) Accept customized special functions and algorithm software from users.

·Free technical support. Quickly upgrade algorithms, usually the fastest algorithm upgrade takes one working day. Upgrade the software once every working day.

·Supports WINDOWS 7/Win10/Win11 32/64bit
