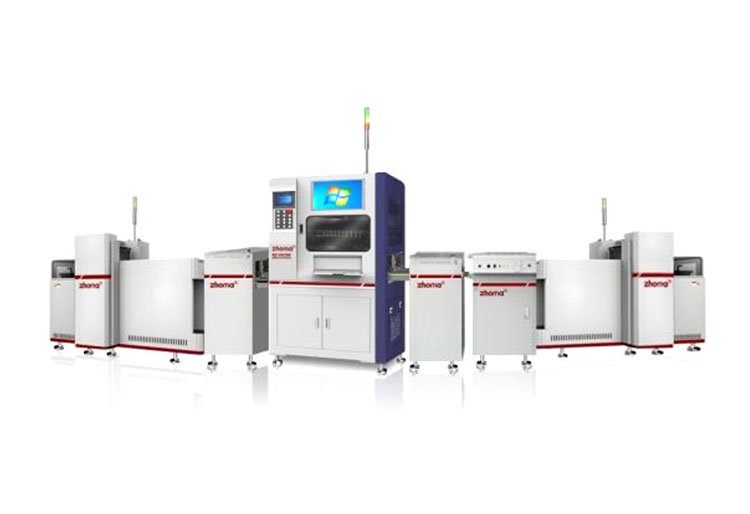

Automated In-System IC Programmer Production Lines-SP05

(1) SP05 adopts modular design, and the number of main bodies of the online Programmer machine is combined according to the rhythm and the type of chips that need to be burned on the PCBA, with different numbers of main bodies

(2) Built in XELTEK In-System Programmer ISP416. Chips that support almost all serial protocols: MCU, serial FLASH and EERROM, as well as parallel eMMC and NAND/NOR FLASH

(3) Powerful intelligent software simplifies the learning, operation, setup, and management of operators to the extreme.

(4) Each online Programmer machine has dual tracks and can simultaneously burn 2 sets of PCBA online. Each set of PCBA can burn up to 80 patches.;

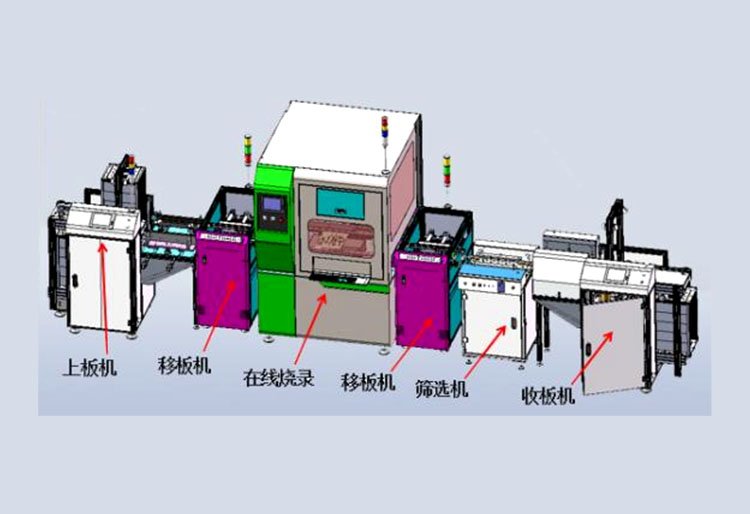

(5) Peripherals: automatic PCBA feeding machine, transfer machine, screening machine, receiving machine, etc.

(6) High reliability, stability, and safety, with a minimum accuracy of ± 0.01mm

(7) Powerful intelligent software simplifies learning, operation, setup, and management to the extreme.

(8) With a complete programmer and real-time operation database of automatic machines, as well as local and remote MES system interfaces, users can easily connect this system to their own MES system to achieve intelligent production management such as remote Programmer file management, permission management, output control and management, real-time production statistics, machine condition inspection and reporting.
