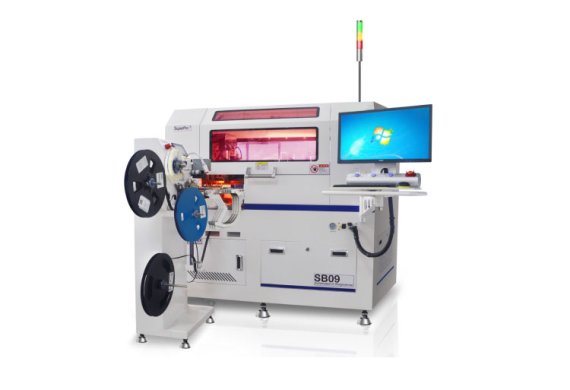

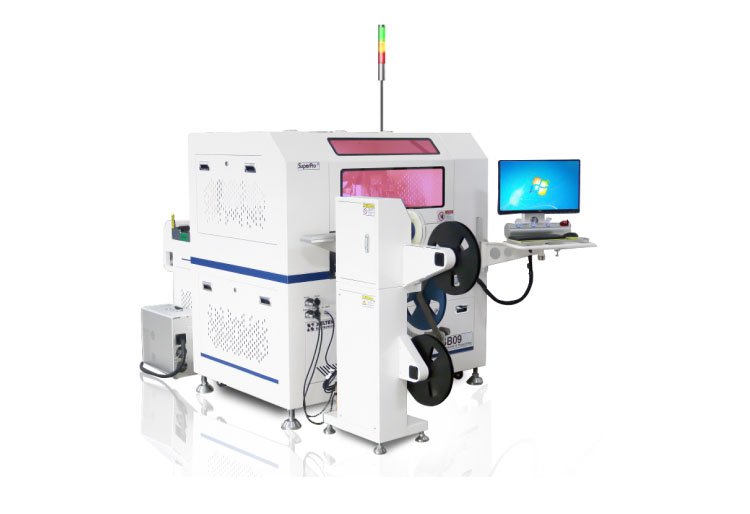

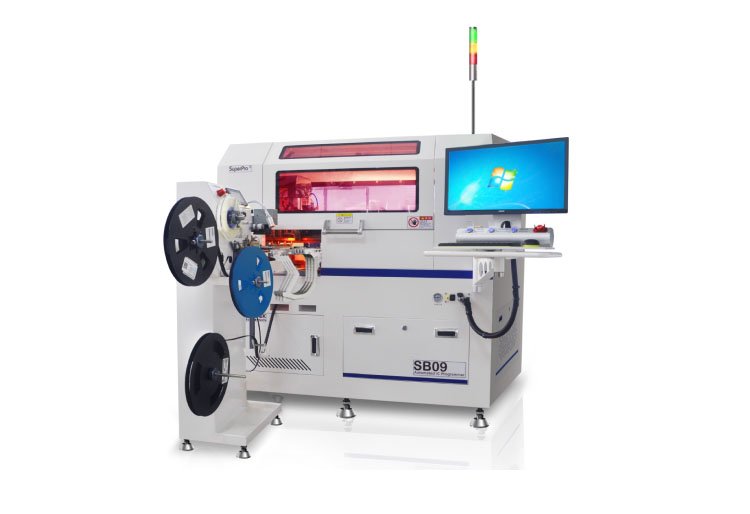

SB09 Automated High-Speed IC Programmer

SUPERPRO/SB09   It is a cost-effective fully automatic IC programming device designed for large-scale electronic product production. This device automatically completes the entire process of chip grabbing, placement, programming, chip retrieval, and packaging, replacing traditional manual operations, greatly improving production efficiency and eliminating possible human errors in IC programming. The combination of top tier programmers in the industry and professional automatic machines is truly the best choice for professional customers.

Inquire now

Add to cart

  • Characteristic
  • Basic Performance
  • Inquiry Now
  • Recommended products
Characteristic

(1) SB09 is embedded with 8 high-speed intelligent programmers SUPERPRO/7500N, supporting over 120000 devices from more than 500 IC manufacturers, including almost all types of programmable ICs. Long term free support for devices ensures long-term effectiveness of customer investment.

(2) Support flight alignment, fast and accurate positioning

(3) The highest output rate reached 2800 UPH.

(4) Four suction nozzles, independent socket pressing actuator, dual feeders, industrial top-level motion control card and servo system, professional control algorithm, high-speed visual positioning system constitute a high-speed, high-precision, and high stability motion and picking and placing system.;

(5) Optional peripherals: automatic tray feeding and unloading/tape packaging equipment/laser marking machine/3D detection, etc.

(6) High reliability, stability, and safety, with a minimum accuracy of ± 0.01mm

(7) Carefully designed to ensure extremely short changeover time.

(8) Powerful intelligent software simplifies learning, operation, setup, and management to the extreme.

(9) With a complete programmer and real-time operation database of automatic machines, as well as local and remote MES system interfaces, users can easily connect this system to their own MES system to achieve intelligent production management such as remote Programmerfile management, permission management, output control and management, real-time production statistics, machine condition inspection and reporting.


_0006_SB09自动高速烧写器 _0005_SB09自动高速烧写器

Basic Performance
  • High production capacity:

    High production capacity:

    4 suction nozzles+independent socket pressing actuator, industrial top-level motion control card and servo system, professional control algorithm, high-speed visual positioning system constitute a high-speed, high-precision, and high stability motion and placement system. The highest output rate reaches 2800 UPH

  • Accurate positioning:

    Accurate positioning:

    Look down at the chip on the CCD calibration nozzle and place it accurately in place.

  • The support for device types is unparalleled:

    The support for device types is unparalleled:

    Whether it supports the devices that users need is the foundation of an automatic programmer.For 30 years, Sylt has maintained a leading position in the industry in this indicator and has been increasing at a rate of thousands per year.

  • Rich peripheral support:

    Rich peripheral support:

    I/O mode supports TRAY (manual mode standard, automatic mode optional), TAPE (TAPE-IN can be installed up to 2 units), TUBE. Supports packaging conversion. Can be used as a packaging conversion machine. The marking method supports ink and laser.

  • Short line changing time:

    Short line changing time:

    I/O devices and adapters can be replaced quickly and easily, with intelligent position calibration, engineering programmer settings, and barcode automation.

  • Reliable and safe:

    Reliable and safe:

    Industry-leading ball screws and guides, motors, motion control cards, vision and control algorithms, 10 years of professional experience in automatic machines, and 30 years of professional experience in programmers. Anti stacking and anti writing mechanism.

  • Powerful intelligent software:

    Powerful intelligent software:

    Graphical human-machine interface, powerful and friendly software, short learning time, automatic saving of machine initial settings, automatic saving of programmer configuration and selection, rich statistical and log information, Convenient production and quality traceability, permission management, flexible automatic prohibition strategy for defective sockets and modules, reducing the defect rate in unattended situations, and preventing stacking mechanism.

  • Factory intelligent management interface:

    Factory intelligent management interface:

    With a complete programmer and real-time operation database of automatic machines, as well as local and remote MES system interfaces, users can easily connect this system to their own MES system to achieve remote Programmerfile management, permission management, output control and management, real-time production statistics, machine condition inspection and reporting, and other intelligent production management.

Programmer System：

  • 8 high-speed intelligent universal production programmers SUPERPRO/7500N;

  • Each device supports up to 8-32 chips for simultaneous programming;

  • Directly supports various voltage devices ranging from 1.2V to 5V; Extremely high reliability and stability;


Sports System：

  • Drive: High performance X-Y-Z - θ servo system, high-performance motion control board, Panasonic servo system, imported screw and guide rail.

  • Accuracy: X-axis: ± 0.01mm; Y-axis: ± 0.01mm; Z-axis: ± 0.01mm;θ axis: 0.15 °.

  • Effective travel: X-axis: 850mm; Y-axis: 500mm; Z-axis: 28mm.

  • Number of suction nozzles: 4

  • Operable chip size: maximum 25x25mm, minimum 1x1.5mm

  • Maximum output rate: 2800 UPH


Sports System：


PC:   High performance branded industrial control computer;

Operating System: Windows 10

Display: 19 inch LCD monitor;

Data input device: keyboard+mouse

I/O devices:

Manual Tray：Standard configuration. Program one disk at a time, and manually replace the disk after completion. Online marking cannot be completed under this method.

Tape out packaging machine：The programmed chip is repackaged as TAPE. Optional cold sealing or hot sealing. The width of the ribbon can be adjusted from 8-32mm.

Tape In feeder：The electric feeder tears open the tape and feeds it into the suction nozzle for suction. Select specifications based on chip width;

Automatic Tray In/Out：Dual track automatic entry and exit of Tray, zero disk changing time, can hold approximately 50 OK/to be burned disks.

Tube In material feeder：Vibration mode completes the feeding of pipe materials. Select the slide rail and guide slot according to the chip width.

Tube Out Material Feeder：The vibration mode completes the output of the pipe material. Select the slide rail and guide slot according to the chip width.

Tape Ink Maker system：An additional system for tape out packaging machines. Mark a dot with ink on the programmed chip.



Vision System：

  • Industrial grade digital camera. The pixel count is 1280 × 1024.

  • Visual range: 40mm X 35mm

  • Visual accuracy: 0.01mm

  • Visual system adjustment accuracy: △ x=△ y=0.07 mm, △ θ=0.1 °


news01


Mechanical&Electrical Systems：

  • Working voltage: 200~240V/50~60Hz.

  • Power: 2.5KVA.

  • External air source: clean air, air pressure: 0.6MPa. Gas consumption: 72 liters per minute

  • Mechanical dimensions: Host 1000 (L) x 1610 (W) x 1550 (H) (mm)

  • Net weight of machine: Main unit 900kg

  • Automatic Tray Feeding and Unloading Machine: 1500 (L) × 320 (W) × 1000 (H) Weight 165kg

  • Tape packing machine: 1200 (L) × 320 (W) × 1200 (H) Weight 90KG
