Hardware Functions
Rich Interface Configuration: The ISP cable provides most serial protocol interfaces without additional adapters, adapting to various target devices. It is equipped with USB2.0 high-speed interface (for host communication) and standard ATE interface (for external equipment control), featuring strong interface compatibility.
Wide Voltage Adaptation & Power Supply Support: It supports target systems with a main voltage of 1.5V to 5V, and can directly supply power to low-power target systems without additional power modules, simplifying the connection process.
Stable Long-Distance Transmission: Built-in long-line drive circuit, it can still ensure reliable and stable programming operation even when the clock frequency is 20MHz and the cable length reaches 2 meters, meeting the needs of long-line applications in industrial scenarios.

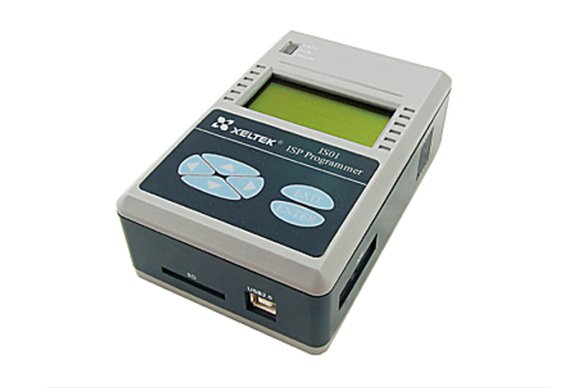

Independent Offline Control Kit: Equipped with LCD screen, 6-key keyboard and LED status display, it can intuitively view operation progress and device status in offline mode, with simple and convenient key operation. It supports SD card to store project files (maximum 16GB), and the number of stored project files depends on the total size of project files and SD card capacity, meeting the storage needs of batch programming files.
Stable Power Input: Adopting 12VDC/2A external system power input, it provides stable and sufficient power supply, ensuring long-term continuous operation of the device and adapting to the high-intensity operation needs of industrial production.
Application Scenarios
With its stable and reliable design and multi-adaptability, the IS01 can be widely used in scenarios such as integrating ISP functions into ICT equipment, R&D and debugging of electronic equipment, batch programming in production lines, and on-site equipment maintenance and upgrading. It balances the precise operation of laboratories and the high-intensity operation of industrial sites, making it an all-round serial programmer with both professionalism and practicality.
