Up to now, it supports 247 manufacturers and 34,126 programmable devices.

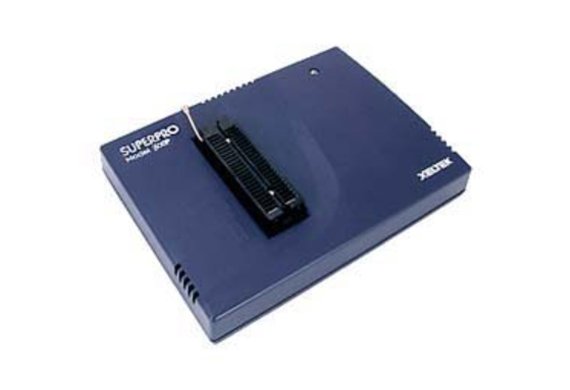

The SUPERPRO/610P economical programmer/burner/writer adopts the SUPERPRO/6000 core, offering the same speed as the SUPERPRO/6000 series. It is equipped with a 48-pin universal drive circuit, and the supported devices are similar to those of SUPERPRO/500P (subject to the device support list).
Fast reading and programming speed that exceeds SUPERPRO/500P, with the average programming speed increased by 2–10 times or more.
The 48-pin universal drive circuit is compatible with SUPERPRO/500P and 501S adapters.
Directly supports devices with operating voltages ranging from 1.2V to 5V.
The advanced waveform drive circuit ensures an extremely high programming success rate. Combined with algorithms certified by IC manufacturers, it guarantees a high programming yield even for low-voltage devices, second-hand devices, or low-quality devices. Programming results can be verified with both high and low voltages to ensure long-term stability.
In online mode, the PC controls the programmer/burner/writer via a high-speed USB 2.0 port, enabling convenient debugging and making it ideal for R&D.
ISP function enables in-system programming via an ISP download cable (additional debugging and development required).
Automatically detects incorrect chip insertion and poor pin contact to prevent device damage.
Comprehensive overcurrent protection to avoid damage to the programmer itself.
Rich software functions simplify operations, improve efficiency, and reduce errors, providing a user-friendly experience.
Project Function: Saves all user operations and settings for the target device—including device model selection, programming file loading, configuration bit settings, and batch commands—in a project file. Each launch directly enters chip programming mode, effectively reducing the risk of misoperation. Project files can be password-protected to prevent data leakage.
Batch Processing (Auto) Command: Allows users to combine common commands such as erase, blank check, program, verify, and encrypt into a single one-step command. In mass production mode, the CPU automatically executes the batch command once a chip is correctly inserted, eliminating the need for manual button presses.
Serial Number Function: Provides standard serial number generation and insertion, and supports custom serial number generators.
Log File Function: Facilitates quality tracking through detailed logging.
Supports Windows XP/Vista/Win7/Win10 operating systems.
